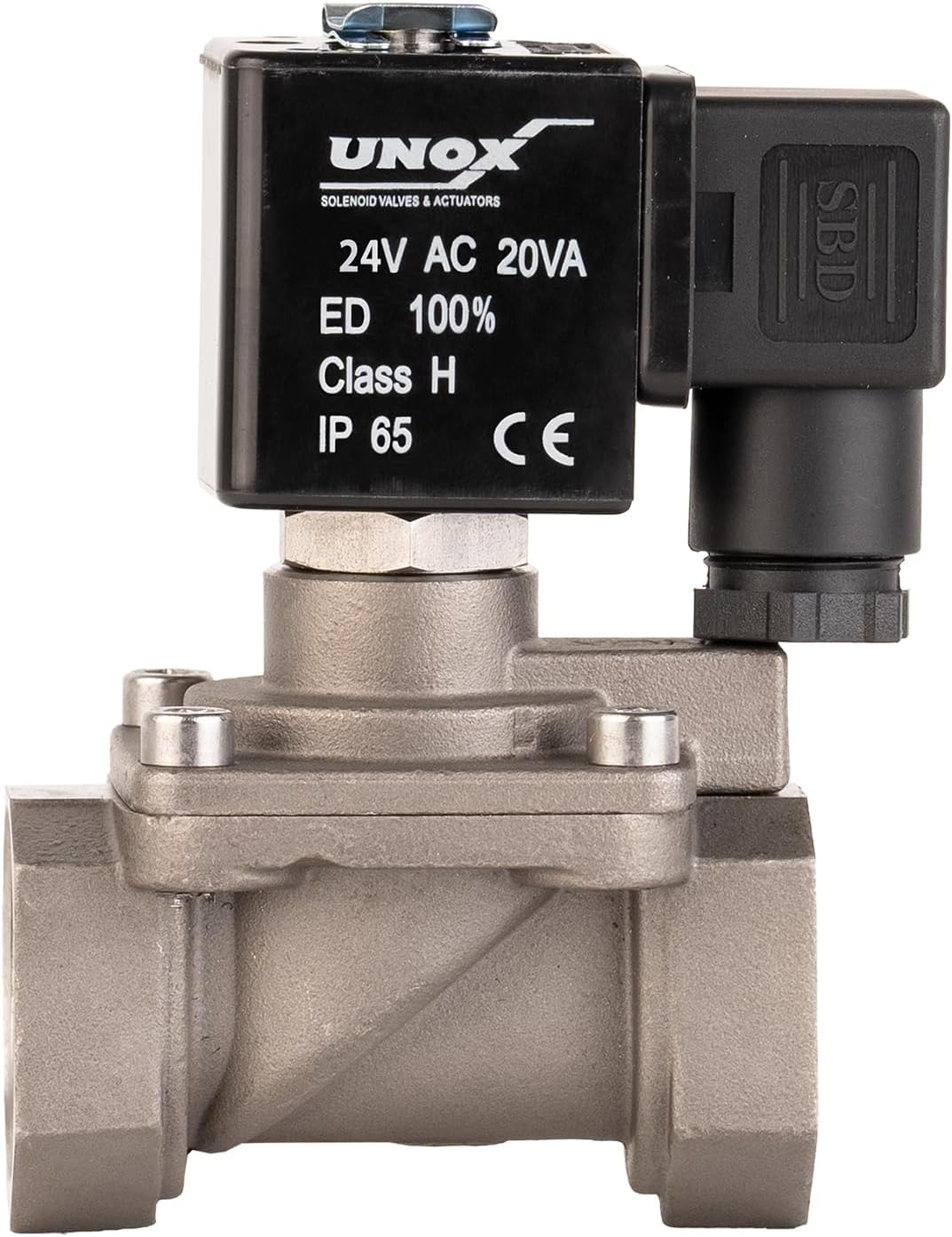

UNOX 1/2" NPT Steam Solenoid Valve 24V AC, High Temperature 176°F/356°F AISI316 Stainless Steel Electric Solenoid Valve Normally Open - 0-363 PSI (0–25 Bar) Threaded Industrial Flow Controller

What is Stainless Steam Solenoid Valve? Steam Solenoid Valve is an electromechanical valve that allows or blocks the movement of steam in one direction in a pipeline. This valve is controlled by a magnetic coil called a solenoid and is often used in a system such as a steam boiler. Steam Solenoid valve increases the efficiency of the system and ensures its safety by ensuring the movement of steam in the right direction. Where is the Stainless Steam Solenoid Valve Used? Steam Solenoid Valves are designed for installations with high temperature (80°C – 180°C). It is generally used in industry and facilities to control steam. It can be used in steam systems to control the distribution of steam, to ensure that the steam is sent to the right areas and to regulate the flow of steam. It can also be used to ensure the operation of steam powered appliances and the safe use of steam. Solenoid valves are manufactured in two types as normally closed (to open the closed valve when the coil receives energy) and normally open (to close the open valve when it receives energy from the coil). Normally Open State Operating System Normally Open Solenoid valve initially allows the passage of fluid. In order to close the valve, the coil moves with the electric current coming to the coil, pushing the core down and closing the mouth of the orifice hole, and in this case, the pressure inside increases gradually and pushes the diaphragm down and closes the orifice through which the fluid passes. In a short time, the pressure spreads homogeneously on the diaphragm and the pressure higher than the pressure of the fluid prevents the fluid from lifting the diaphragm, so the valve is in the closed position. All this happens in a very short time. Our product is designed to get the best efficiency. Suggestions Mount the solenoid valve so that the coil is up. In the installation, such as a strainer before the solenoid valve, etc. use filters. We use more durable diaphragm and gasket material for high temperatures Please specify your diaphragm and gasket request for high temperature in your orders. Things to Consider When Choosing a Steam Solenoid Valve: The coil should be selected in accordance with the operating voltage (AC-DC) to be used. Protection and insulation should be provided according to the place where it will be applied. (Electricity turns on when air comes in, and turns off again when you cut off the electricity) In the line or system you will use, min. and max. pressure values are very important in the selection of the valve. The quality and temperature of the fluid is a direct factor in the selection of the valve. The direction of the fluid and the arrow mark on the body are in the same direction and attention should be paid to the assembly. Since the solenoid valve does not function as a check valve, the fluid flows back at reverse pressures. In these cases, installing a check valve after the solenoid valve is correct for the connection. The line to which the valve is attached must be free of impurities.

• AISI316 STAINLESS DURABILITY: This solenoid valve features an AISI316 stainless body for strong corrosion resistance in steam lines. The stainless solenoid valve build extends service life, and solenoid valves in this class keep stable performance in demanding industrial environments.
• NORMALLY OPEN FAIL-SAFE FLOW: This solenoid valve stays open without power for continuous flow needs. Compared to standard solenoid valves, the stainless solenoid valve design improves system reliability, while the Electric Solenoid Valve coil delivers quick actuation for precise flow control.
• HIGH TEMPERATURE STEAM RATING: Designed for steam service, this solenoid valve supports 80°C to 180°C (176°F–356°F). The stainless solenoid valve body protects internal parts under heat stress, and solenoid valves like this unit maintain consistent operation during thermal cycles.
• UP TO 25 BAR OPERATING RANGE: This solenoid valve handles pressure up to 25 bar (0–363 PSI) for industrial regulation. The stainless solenoid valve structure manages demanding duty, and solenoid valves paired with robust sealing deliver dependable control for steam process systems.
• IP65 CLASS H COIL PROTECTION: This Electric Solenoid Valve includes IP65 protection and a Class H coil for harsh locations. The solenoid valve coil supports ED 100% duty, while the stainless solenoid valve housing helps solenoid valves stay stable against dust and moisture exposure. - Made in Türkiye
